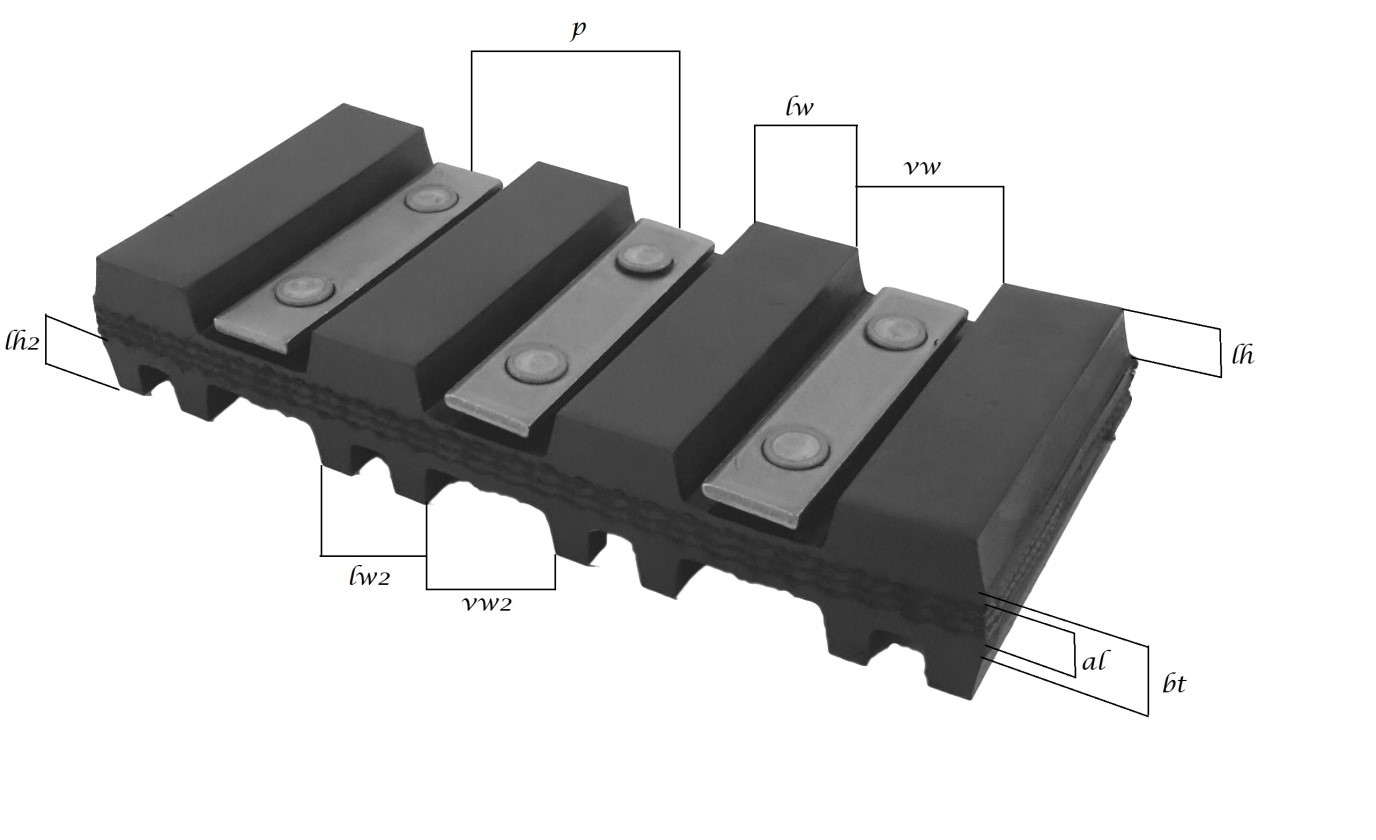

Double High Profile Type C Conveyor Belt

core carcass construction uses EP 900/3 belting. This is 3-ply high tensile belting
standard width of 60mm, also available in 40mm and 50mm but width is highly customisable from 75mm down in selected pitches
standard High profile lug height of 8mm on top and bottom of double high profile traction belting. The high lug allows for more traction and longer lasting traction off the belting without interference from backing plates
standard valley widths range from 15mm – 25mm , with lug widths varying from 16mm – 20mm
more information available in catalogue.
