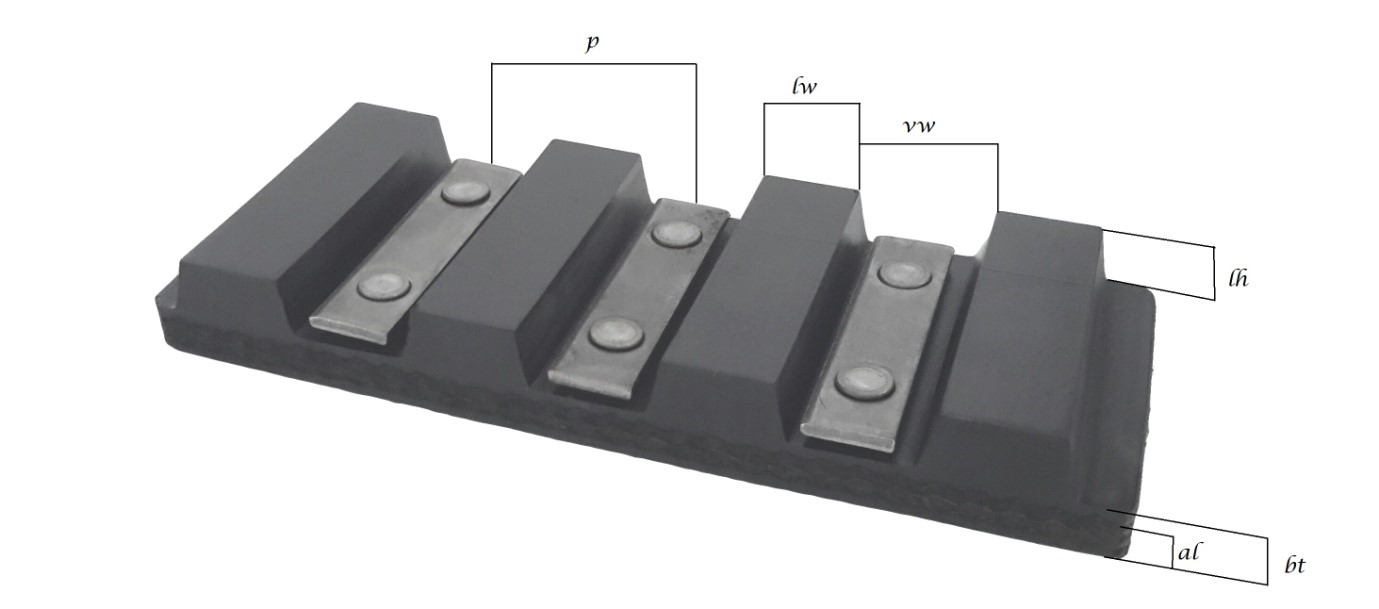

High Profile Type B Conveyor Belt

core carcass construction uses EP 900/3 belting. This is 3-ply high-tensile belting.
standard width of 60mm, also available in 40mm and 50mm but width is highly customisable from 60mm down
standard high profile lug height of 8mm on all high profile traction belting. The high lug allows for more traction and longer lasting traction off the belting without interference from backing plates
a dub lug system is used on the bar side of the double high traction belting to ensure crop is fully protected from hard steel bars. These lugs also allow for reverse traction when conveyor needs to be moved backward, friction drives have a surface to drive against
standard valley widths range from 15mm – 25mm , with lug widths varying from 16mm – 20mm
more information available in catalogue.
